Linde H25CT, H27CT, H30CT, H32CT Forklift Truck H1313 Series Service Training (Workshop) Manual

Original Illustrated Factory Service Training (Workshop) Manual for Linde Forklift Truck Type 1313, Models H25CT, H27CT, H30CT, H32CT .

Original factory manuals for Linde Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck

Covered models:
   H25CT
   H27CT
   H30CT
   H32CT

Format: PDF, 252 Pages, Printable
Language: English

Contents:
   0. Product Information
    Variants and Options
    Mast variants
    Attachments
    System options
    Chassis options
    Cabin options
    Operating environment options
    Scheduled Maintenance
    Maintenance at 1 000 hours
    Maintenance at 3000 hours
    Maintenance at 6000 hours
    Sideshifter Maintenance Intervals
    Scheduled Maintenance Summary
    Control System
    Control System Overview
    Fault Display
    Fault Indicator Explanations
    Fluids and Lubricants
    Capacities
    Fuel
    Fluid and Lubricant Specifications
    Towing the Truck
    Towing the Truck
    Truck Specifications
    Specifications
    Mast Heights
   1. Engine
    Engine
    Control System Overview
    Engine Specifications
    Air Filter Replacement and Vacuum Switch Check
    Intake and Exhaust System Inspection
    Engine Oil and Filter Replacement
    Spark Plug Replacement
    Alternator Belt Inspection
    Alternator Belt Replacement
    Timing Belt Inspection
    Timing Belt Removal, Installation, and Tension Adjustment
    Cylinder Head Assembly Removal and Installation
    Camshaft Removal and Installation
    Hydaulic Lifter Testing
    Radiator and Hydraulic Oil Cooler Cleaning
    Coolant Concentration Measurement
    Coolant Draining and Refilling
    Thermostat Replacement
    Water Pump Replacement
    Engine Mount Inspection
    Engine Removal and Installation
    Drive Line Removal and Installation
    Sensors
    Crankshaft Speed Sensor 0B2
    Flywheel Speed Sensor 1B1
    Coolant Temperature Sensor 0B1
    Fuel System
    Evaporator
    Mixer
    Lambda Control System
    LP System Leak Inspection
    LP Filter Replacement
    Exhaust Gas CO Level Check
   2. Power Transmission
    Component Specifications
    Drive Component Overview
    Hydrostatic Drive Unit
    Hydrostatic System Overview
    Hydrostatic Unit Components
    Troubleshooting the Hydrostatic Unit
    Control Piston Initial Delivery Adjustment
    Swivel Angle Adjustment
    Hydraulic Zero Adjustment
    Drive Axle
    Drive Axle Oil Level and Leak Inspection
    Wheel Hub Removal and Replacement

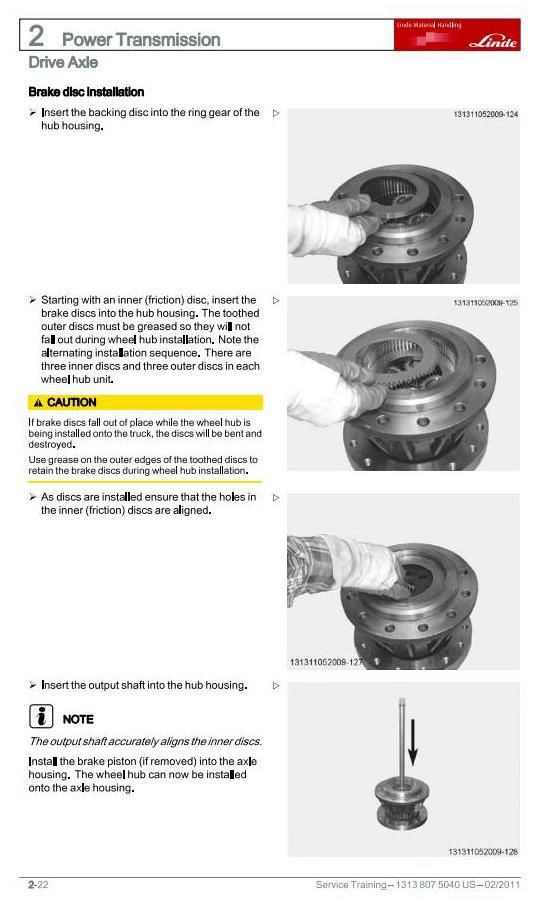

    Brake Disc Replacement
    Brake Piston Repair
    Wheel Hub Unit Disassembly
    Wheel Hub Unit Assembly
    Drive Axle Removal and Replacement
    Removing the ring and pinion from the axle housing
    Ring and pinion carrier disassembly
    Ring and pinion carrier assembly
    Ring and Pinion Carrier Installation
   3. Chassis
    Fasteners
    Tightening torques
    Brake
    Hydraulic brake valve
    Adjusting the brake pedal switch
    Parking Brake Testing
    Wheels
    Check wheels and tires
    Miscellaneous
    Chassis Mechanism Inspection
   4. Steering
    Steering system
    Steering system - Checking
    Steering Axle Cleaning and Lubrication
    Steering Cylinder and King Pin Fastener Inspection
    Steering axle - Design
    Steering axle number
    Steering axle - Removal and installation
    Repairsto the steering axle
    Replacing steering cylinder seals
    Stub axle
    Replacement of wheel bearings
    Adjusting the steering stop
   5. Controls
    Accelerator
    Function
    Replacement
    Stop screws
    Hydraulic Control Levers
    Joystick variants
    Functional description
    Replacement
    Pedals
    Pedal Assembly Inspection
   6. Electrics / Electronics
    General
    Safety instructions for electrical equipment
    EMC- Electromagnetic compatibility
    CAN bus
    Electrostatic charging
    Central electrical system
    Linde Truck Control (LTC)
    Fuses
    Engine Protection System (optional equipment)
    Checks
    Testing the electronic controllers and components
    Testing the LTC (vehicle and lift controller)
    Checking wiring harness
    Testing sensors
    Testing the indicator unit
    LP Level System
    Fault Code Log ° Reading and Clearing
    Drive Potentiometer and Joystick Calibration
    Maintenance Interval Updating
   7. Hydraulics
    Working hydraulics

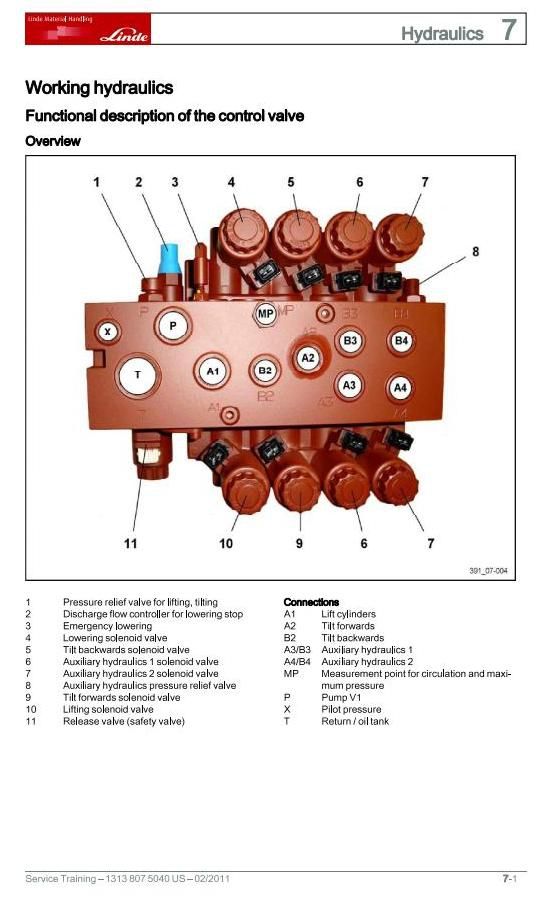

    Functional description of the control valve
    Overview
    Working hydraulic circuit diagram
    Function characteristics
    Pressure Relief Valves
    Hydraulic Bleed Valve Inspection
   8. Load lift system
    Lift mast
    Extension sequence triplex mast
    Lift mast chains
    Adjust lift mast chain
    Roller play
    Removal of slide pads - standard mast
    Removal of slide pads -duplex mast
    Removal of slide pads -triplex mast
    Lift cylinder (outer) - removal and installation
    Lift cylinder (centre) - removal and installation
    Lift cylinder - sealing
    Line break safety device
