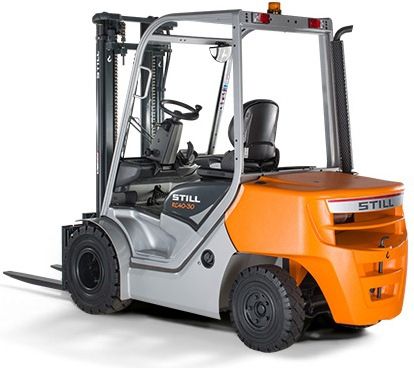

Original Illustrated Factory Workshop Service Manual for Still IC Engined Forklift Trucks Models RC40-16, RC40-17, RC40-18, RC40-20, RC40-25, RC40-30, RC40-33, RC40-35 Series R4041, R4042, R4043, R4044, R4045, R4046, R4051, R4052, R4053, R4054, R4055, R4056
Electrical Circuit Diagrams Included!!!
Original factory manuals for Still Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck. All Manuals Printable and contains Searchable Text

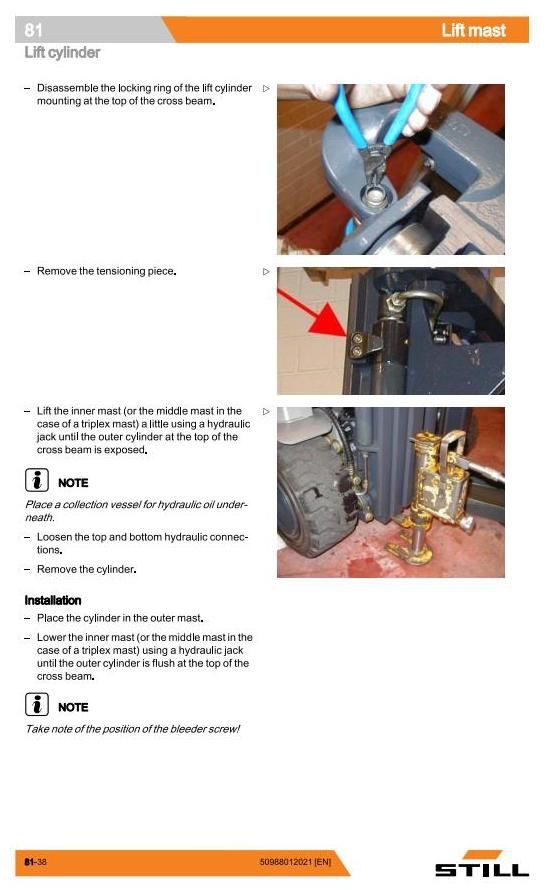

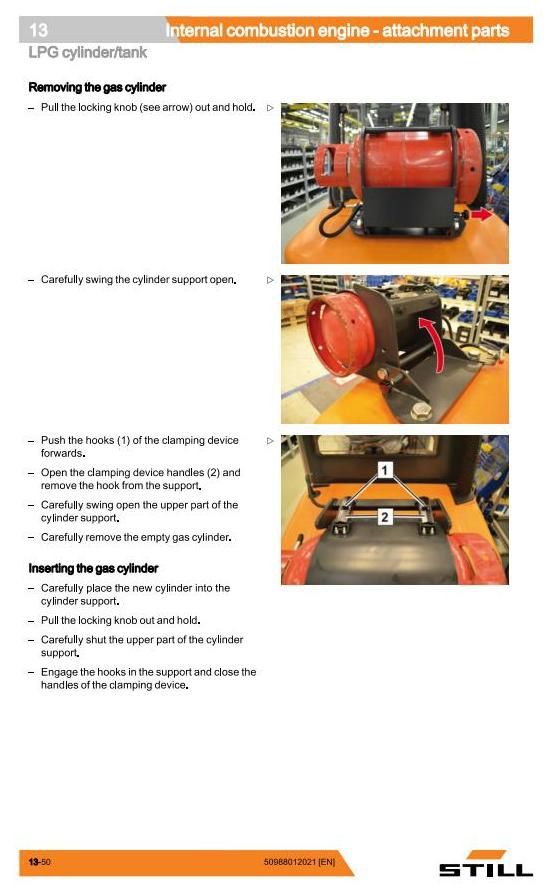

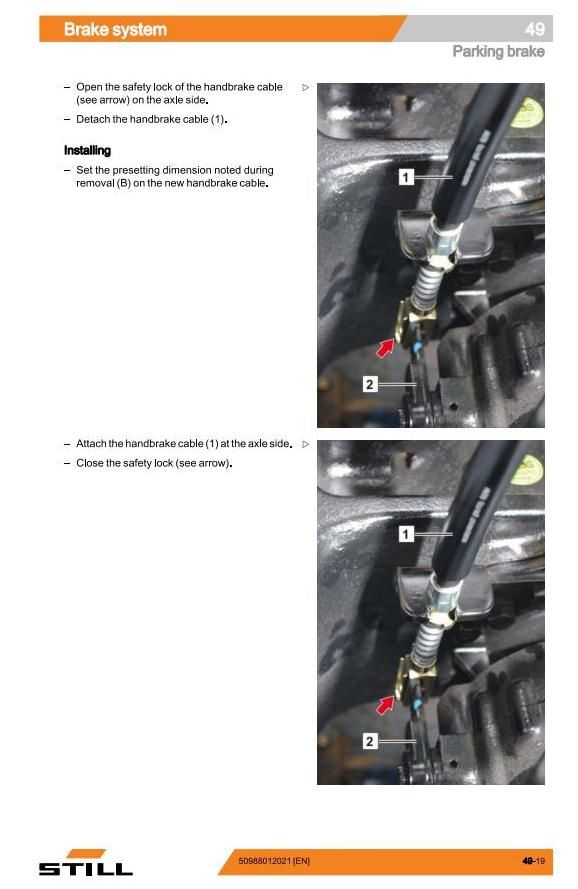

Contents: 00 Product information Foreword Information about the RC40 Safety information To avoid accidents Jacking upthe front of the truck Jacking upthe rear of the truck Securing the fork carriage Safety regulations for handling consumables Oils Hydraulic fluid Diesel fuel Coolant Battery acid Disposal of consumables Diagnostics Tightening torques by units Standard torques 01 Service Maintenance Maintenance instructions Operations Preliminary to Maintenance Scheduled truck maintenance Summary table of maintenance operations Maintaining the KT20/KT 30 torque converter Changing the oil for the KT20/KT 30 torque converter Maintenance check lists Maintenance -400 hours Maintenance - 500 hours Maintenance- 1000 hours/annually Maintenance- 1500 hours or annually Maintenance -3000 hours/every two years 02 Diagnostics KT 20/KT 30 torque converter Troubleshooting Fault detection Kubota diesel engine 1.6/2.0 1- 2.5/3.5 1 Checklist for engine overheating Troubleshooting 12 Internal combustion engine Kubota V 2403-M-DI-E3B diesel engine (1.6/2.0 1) Description Engine attachment parts General technical data Engine dimensions Engine identification Tightening torques for special screws Lubricating system specification Lubricating system specification, diesel version 1.6/2.0 1 Forced circulation lubrication Kubota V 2607-DI-E3B diesel engine (2.5/3.5 1) Description Engine attachment parts General technical data Engine dimensions Engine identification Tightening torques for special screws Lubricating system specification Lubricating system specification, diesel version 2.5/3.5 1 Forced circulation lubrication Start-up smoke elimination Start-up smoke elimination - Functionality Checking the speed sensor start-up smoke elimination Checking the start-up smoke elimination magnet Checking the start-up smoke elimination actuator Engine shut-off magnet Mounting the engine 2.5/3.5 1 Mounting the torque converter and engine Kubota WG 2503 LPG engine (1.6/2.0 1- 2.5/3.5 1) Lubricating system specification Lubrication system specification, LPG version 1.6/3.5 1 13 Internal combustion engine - attachment parts Air intake/filter Cleaning the air filter Cooling system Radiator Cooling system specification, diesel version 1 .6/2.0 1 Cooling system specification, diesel version 2.5/3.5 1 Cooling system specification, LPG version 1 .6/3.5 1 Checking and cleaning the radiatorfins Removing and installing the radiator Checking the coolant level Checking the coolant concentration Draining the coolant Topping up the coolant Fuel system Assembly overview: fuel system Air bleeding from the fuel feed circuit procedure Kubota diesel engine 1.6-2.0 1 Fuel system specifications, diesel version 1.6/2.0 1 Injector Injection pump Pump element Glow plug Glow plug continuity Kubota diesel engine 2.5-3.5 1 Fuel system specifications, diesel version 2.5/3.5 1 Injector Glow plug continuity measurement Injection pump unit Injector opening pressure Injection pump Pressure valve Engine speed regulator Fuel filter Draining water from the fuel filter LPG system LPG system Impco components Evaporator function- gas mixer 0B6 MAP/MAT sensor Suction module Chassis module Gas shut-off valve unit Gas shut-off valve monitoring Shut-down due to lack of gas Maintenance and test specifications Testing CO level in exhaust gases Servicing the LPG filter Servicing the 30-bar excess pressure safety device Evaporator - Maintenance High-pressure relief valve- 1.7 bar LPG cylinder/tank LPG cylinder Changing the gas cylinder 14 Internal combustion engine - exhaust system Exhaust system -diesel Removing and installing the exhaust system 22 Mechanical drive axle Drive axle Lubricating system specification for drive axle Differences between axle KA 30 and KA 20 Drive axle 2.5/3.5 1 Removing and installing the drive axle Axle cooling system Gearbox oil cooling Checking the oil level in the axle cooling system Gearbox oil pump Cleaning the screen filter for gearbox oil Petrone double hydraulic pump, 1 9 cm3 Petrone double hydraulic pump, 28 cm3 Cardan shaft Cardan shaft Installing and removing the cardan shaft Torque converter Description Differences between KT 30 and KT 20 converter gears Functionality Sectional drawing Technical data Modes of operation (power flow) Lubricating system Lubricating system specification, KT 20 torque converter (1.6/2.0 1) Lubricating system specification, KT 30 torque converter (2.5/3.5 1) Dismantling and assembling the torque converter Mounting screws and pilot bearing Overview of gearbox assembly Overview of converter assembly Dismantling the torque converter Assembling the converter gear Dismantling the gearbox in assemblies Installing the gearbox units Dismantling the clutch drum unit Assembling the clutch drum unit Dismantling the forward gear clutch drum Assembling the forwards gear clutch drum Dismantling the reverse gear clutch drum Assembling the reverse gear clutch drum Dismantling the idling unit Assembling the idling assembly Dismantling the output pinion unit Assembling the output pinion unit Valve block Valve block Dismantling the valve block assembly Assembling the valve block assembly Converter gear pressure measurement Oil circulation 31 Chassis Counterweight 34 Driver`s compartment Bonnet Installing and removing the bonnet 42 Steering system Steering axle 1 .6/2.0 1 Steering axle Installing the steering axle Steering axle 2.5/3.0 1 General technical data Swing axle Swing axle Removal and installation Wheel hub Steering angle Tie rod Axle stub 46 Wheels and tyres General information Filling the tyres Winter tyres Tyrewear check General information for changing tyres Changing the wheels 1.6/2. Ot Checking the tightening torque of the wheel nuts (1.6/2.0 1) Wheel replacement procedure Changing the wheels 2.5/3.5 1 Checking the tightening torque of the wheel nuts (2.5/3.5 1) Wheel replacement procedure Disassembling a wheel Disassembly/assembly of tyres on rims with movable flange Quick tyres assembly/disassembly 49 Brake system Service brake Brake cylinder technical data Installing and removing the brake cylinder Stop lights microswitch Brake and inching pedal Brake system - General Function of the brake and inching pedal Installing and removing the inching cable Adjusting the inching pedal Adjusting the brake pedal Parking brake Installing and removing the handbrake cable Removing and installing the handbrake microswitch Adjusting the handbrake Maintenance Filling and bleeding the brake system (Iruna brake cylinder) Bleeding the brake system 50 Operating devices Accelerator pedal Adjusting the pedal travel Installing and removing the accelerator pedal Removing and installing the accelerator pedal cable 60 Electrics/electronics Electrical system Diesel version fuses Fuses for LPG version Wiring Power cables Maintenance guidelines for power cables Repair -Contact elements Other components SRO drive direction switch monitoring module ISO seat contact monitoring unit 69 Batteries and accessories Starter battery 70 Hydraulics Basic hydraulics Conical nipple fittings (CNF) Boltedjoint 71 Working hydraulics Tilt cylinder Tilt cylinder Removal and installation Dismantling the tilt cylinders Pump unit Petrone double hydraulic pump, 28 cm3 Petrone double hydraulic pump, 19 cm3 Hydraulic pump mounting 73 Hydraulic components Pump for axle cooling system Gearbox oil pump 76 Valves Safety valve Safety valve technical data Safety valve 81 Lift mast Lift mast General technical data Fork arm emergency lowering procedure Telescopic lift mast NiHo lift mast Triplex lift mast Lift mast - Removal Lift mast -installation Load chains Load chains Checking, cleaning Adjusting the load chains Telescopic lift mast (108/117/1 30) Adjusting the load chains NiHo lift mast (108/117/1 30) Middle load chain Triplex lift mast (108/117/1 30) Outer load chain Triplex lift mast Load chain locking device Run-out barrier End position damping Outer cylinder end position damping Middle cylinder end position damping Line break safety device Line break safety device Lift mast 1.6/1.8 1 Telescopic lift mast 1.6/1.8 1 NiHo lift mast 1.6/1.8 1 Triplex lift mast 1.6/1.8 1 Lift mast 2.0 1 Telescopic lift mast 2.0 1 NiHo lift mast 2.0 1 Triplex lift mast 2.0 1 Lift mast 2.5/3.0 1 Telescopic lift mast 2.5/3.0 1 NiHo lift mast 2.5/3.0 1 Triplex lift mast 2.5/3.0 1 Lift mast 3.5 1 Telescopic lift mast 3.5 1 NiHo lift mast 3.5 1 Triplex lift mast 3.5 1 Lift cylinder Lift cylinder Outer cylinder Centre cylinder Cylinder head Rollers/support rollers Support roller play Assembling the mast/carriage support rollers Check Fork carriage Fork carriage
