Original Illustrated Factory Workshop Service Manual for Mitsubishi Diesel Forklift Trucks Models FD15N, FD18N, FD20CN, FD20N, FD25N, FD30N, FD35N
Original factory manuals for Mitsubishi Lift Trucks contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, without restrictions, contains Searchable Text and bookmarks
Covered models:
FD15N (EF16D-01001-up)
FD18N (EF16D-41001-up)
FD20CN (EF16D-61001-up)
FD20N (EF18C-01001-up)
FD25N (EF18C-55001-up)
FD30N (EF14E-03001-up)
FD35N (EF14E-52001-up)
Language: English
Format: ZIP, Contained Set of PDF Manuals:

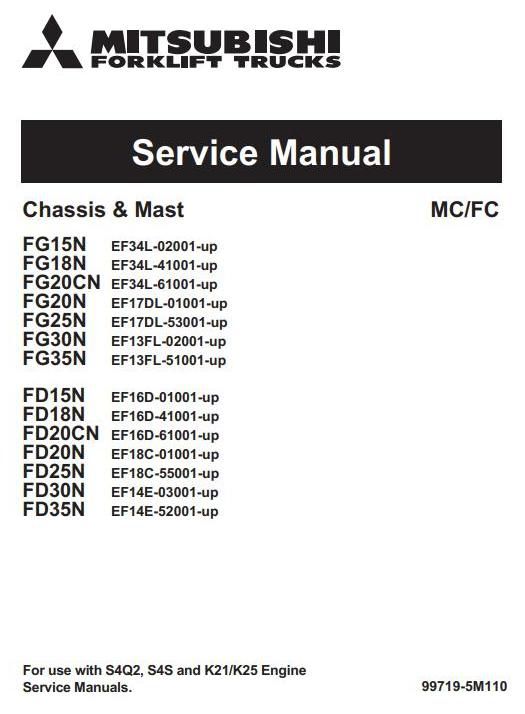

1. Chassis and Mast Service Manual (99719-5M110), PDF, 594 Pages
Contents:
GENERAL INFOMATION
Truck Models Covered, Serial Number Locations,
Dimensions, Technical Data
COOLING SYSTEM
Fan Belt Removal and Installation, Fan Belt Tension
ELECTRICAL SYSTEM
Console Box, Chassis Electrical Devices,
Battery Maintenance, Electrical Schematic
CONTROLLERS
Main Functions of Controller, Input/Output Monitor,
Error Codes and Troubleshooting
POWER TRAIN
Removal and Installation of Power Line
POWERSHIFT TRANSMISSION
Torque Converter,
Singe Speed Powershift Transmission Control Valve,
Automatic Two-Speed Transmission
FRONT AXLE AND REDUCTION DIFFERENTIAL
Front Tire, Front Axle, Reduction, Differential
REAR AXLE
Rear Axle, Rear Tire
BRAKE SYSTEM
Master Cylinder, Wheel Brake, Brake Booster
STEERING SYSTEM
Steering Gear, Power Cylinder, Flow Divider
HYDRAULIC SYSTEM
Tank, Pump, Control Valve,Lift and Tilt Cylinders,
Flow Regulator Valve, Down Safety Valve
MAST AND FORKS
Simplex and Duplex Masts, Triplex Mast
SERVICE DATA
Maintenance Standard, Maintenance Schedule,
Periodic Replacement Parts,Lubrication Instruction,
Special Tool Needed
2. S4S (sn: 180396-up) Diesel Engine Service Manual, PDF, 182 Pages
Contents:
General
Service data
Service tools
Determination of overhaul
Disassembly ofbasic engine
Inspection and repair of basic engine
Reassembly of basic engine
Fuel system
Lubrication system
Cooling system
Inlet and exhaust systems
Electrical system
Adjustment and operation
3. S4Q2 Diesel Engine (sn: 72645-up) Service Manual, PDF, 156 Pages
Contents:
General
Service data
Service tools
Determination of overhaul
Disassembly ofbasic engine
Inspection and repair of basic
engine
Reassembly of basic engine
Fuel system
Lubrication system
Cooling system
Inlet and exhaust systems
Electrical system
Adjustment and operation
