Doosan DX480LC, DX520LC (SN. from 5001) Crawler Excavator Workshop Service Manual

Original Illustrated Factory Workshop Service Manual for Doosan Crawler Excavators Models DX480LC, DX520LC

Original factory manuals for Doosan Excavators, contains high quality images, circuit diagrams and instructions to help you to operate, maintenance and repair your truck. All Manuals Printable, contains Searchable Text and Navigation Bookmarks

Covered models:
    DX480LC (SN: 5001 and Up)
    DX520LC (SN: 5001 and Up)

Format: PDF, 878 Pages
Language: English

Contents:
    Safety

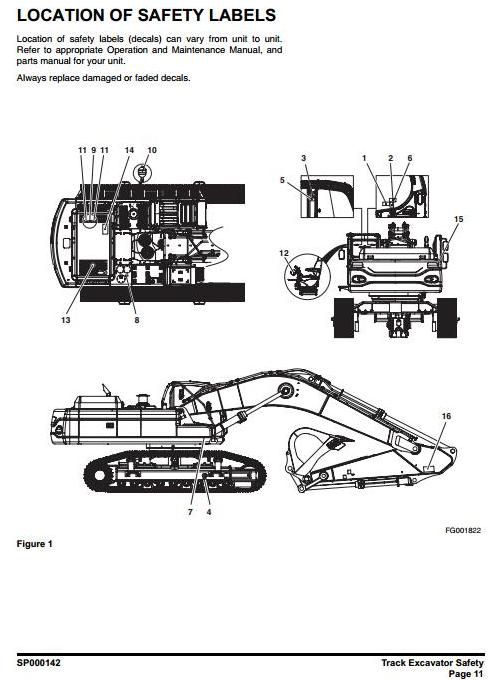

        Track Excavator Safety
    Specifications
        Specification for DX480LC/ 520LC
    General Maintenance
        General Maintenance Procedures
        Standard Torques
    Upper Structure
        Cabin
        Counterweight
        Fuel Tank
        Swing Bearing
        Swing Reduction Gear
    Lower Structure and Chassis
        Track Assembly
        Air Conditioner
    Engine and Drive Train
        Drive Coupling (Main Pump)
    Hydraulics
        Hydraulic System Troubleshooting, Testing and Adjustment
        Accumulator
        Center Joint (Swivel)
        Cylinders
        Swing Motor
        Travel Motor (With Gearbox) (A6V160HD)
        Main Pump (Rexroth)
        Control Valve (Kayaba ModelKVMG-400-DA)
        Remote Control Valve (Work Lever / Joystick)
        Travel Control Valve (With Damper)
        Solenoid Valve Assembly

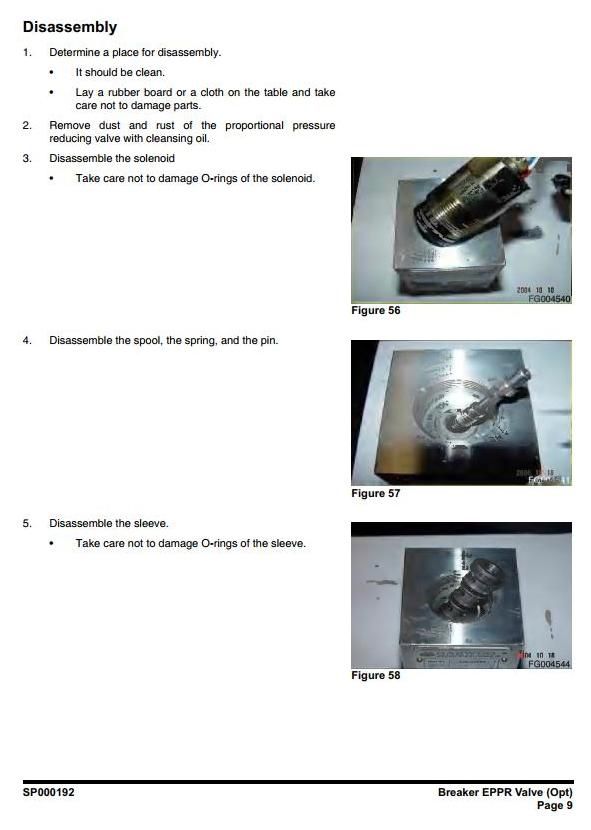

        Breaker EPPR Valve (Opt)
        Fan Motor (Vane Type)

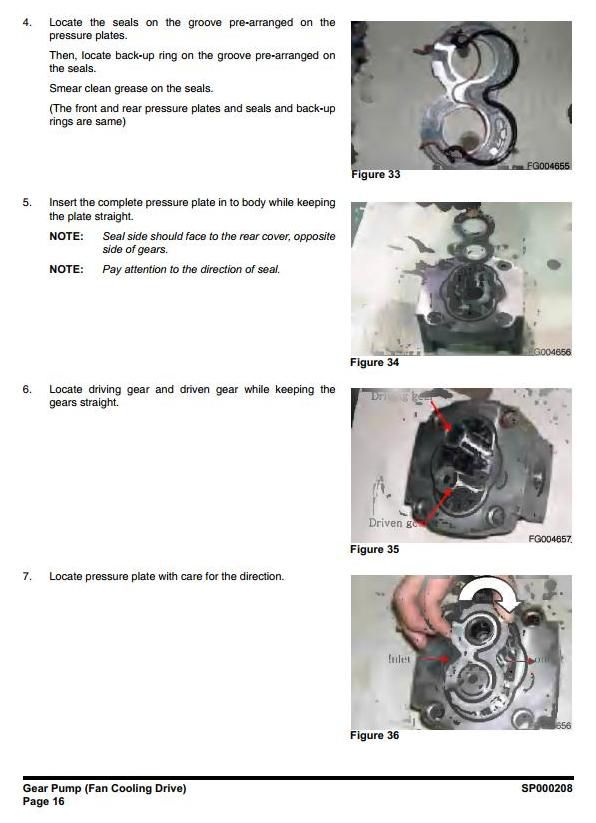

        Gear Pump (Fan Cooling Drive)
        Fan Cooling Flow In-Out Change Valve
        Hydraulic Schematic DX480LC/ 520LC
    Electrical System
        Electrical System
        Electrical Schematic DX480LC/ 520LC
    Attachments
        Boom and Arm
        Bucket.
