Linde N20, N24 Order Picker 132 Series Service Training (Workshop) Manual

Original Illustrated Factory Service Training (Workshop) Manual for Linde Order Picker Series 132; Models N20, N24.

Original factory manuals for Linde Forklift Trucks, contains high quality images, circuit diagrams and instructions to help you to operate and repair your truck

Covered models:
   N20
   N24

Format: PDF, 192 Pages
Language: English

Contents:
   0. Product information
    Description

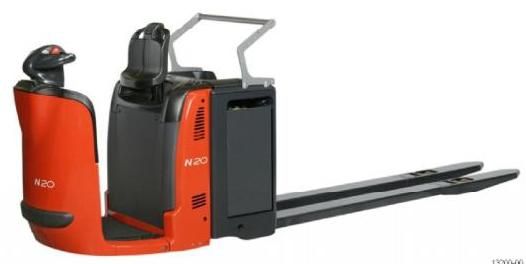

    Order picker N20-N24 Type 132
    Diagnostics
    Accessing truckinformation
    Can Bus Network
    Multi-function indicator, breakdown code display
    Breakdown code descriptions
    TRACTION fault codes
    LIFT fault codes
    Fault codes -STEERING -Main Controller
    Fault codes -STEERING -Safety Controller
   1. Motor
    Traction motor
    Description
    Removing the drive motor
   2. Drive - Transmission
    Drive unit
    Description of the drive unit
    Removal/replacement of the drive unit
    Reducer
    Gear reducer
    Reducer unit
    Removal/ refitting reducer gearbox
   3. Truck
    Battery compartment
    Battery removed vertically or from the side (option)
    Battery removed from the side
    Platform and technical compartment access
    Dashboard console and technical compartment covers
    Chassis equipment
    Height adjustable seat
    Driving platform
    Platform floor
    Removing the drive platform
   4. Steering, braking and wheels
    Electrical steering
    General
    Support with height-adjustable handlebar controls
    Control handlebar
    Removing the handlebar

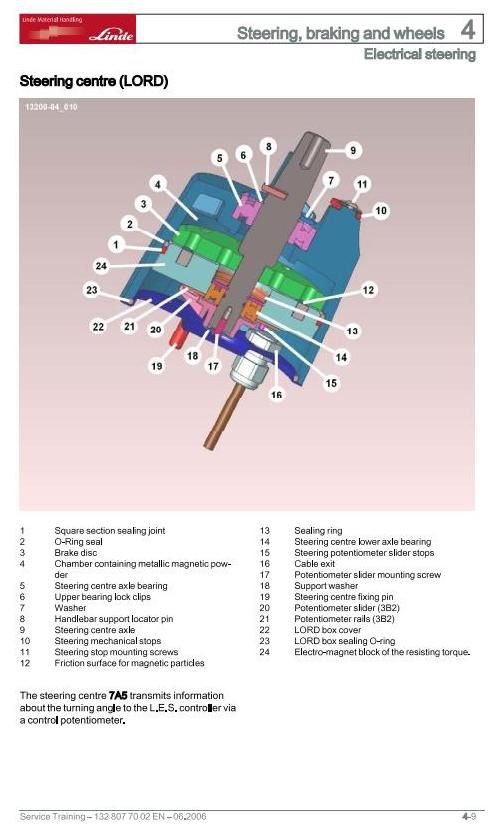

    Steering centre (LORD)
    Steering geared motor
    Removal/replacement of the steering motoreducer
    Wheel position potentiometer (3B3)
    Steering motor (3M1)
    Electric steering adjustment
    Brake
    Hydraulically assisted electromagnetic parking brake
    Wheels
    Rolling bases
    Drivewheel
    Height adjustable fixed stabiliser
    Controllable stabilisers
    Stabilising wheels (suspended stabilisers)
    Load bearing wheels
   5. Control apparatus
    Pedestrian control (option)
    Slow approach buttons 1S10-1S11 -1S12-1S13
   6. Electrical equipment
    N20-N24 type 132
    General
    Truck operation N20-N24type 132
    Location of connectors
    Electrical panel
    Manipulating the electrical plate
    Fuse access
    Traction (L. A.C. 03)

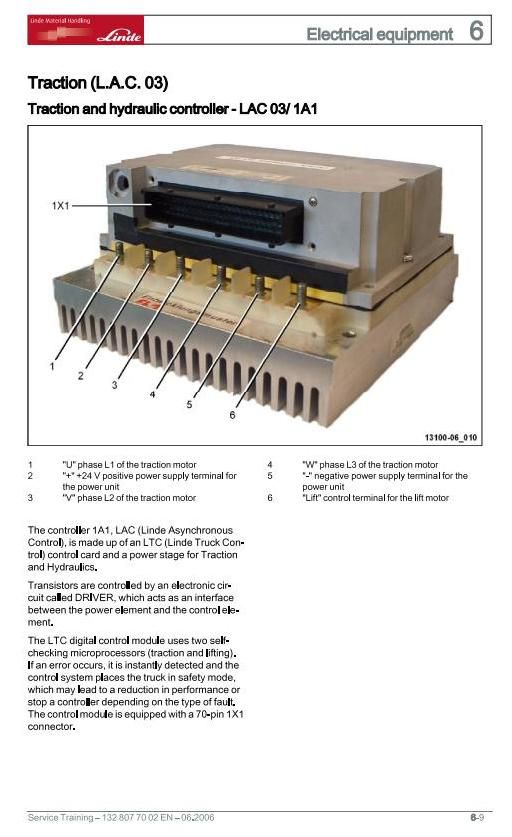

    Traction and hydraulic controller -LAC 03/ 1A1
    Functions of the ''''Inputs/ Outputs'''' of the LAC 03
    Turning on the LAC Controller- 1A1
    Replacing the L.A.C. box (1A1)
    Setting up the control module (1A1)
    Accelerator (1S21, 1S22) and potentiometer (1B1) controls
    Horn4H1
    Hydraulically assisted electromagnetic brake Y1
    Traction motor speed sensor 1B2
    Monitoring traction motor temperature 1B6
    Battery locking sensor 1S1 9
    Controlling the LAC cooling fan 9M1
    Speed restriction n°1 and n°2 (options)
    Hydraulic controls
    Operation of the initial lift (2M1)
    High fork end-of-travel 1 B4
    Initial lift lowering function 2Y2
    Hydraulic stabiliser control (option)
    Inclinometer 1A8
    Stabiliser solenoid valves 2Y8 and 2Y9
    Electrical steering (L.E.S. 40
    Electric steering controller L.E.S./3A1
    Functions of the ''''Inputs/ Outputs,'''' LES(3A1)
    Replacing the L.E.S. box (3A1)
    Setting steering control module parameters (3A1)
    LES Controller power up
    Speed reduction when turning (with LAC n°390 360 85 19)
    Multifunction indicator (Bauser)
    4-button multifunction indicator (version CAN BUS)
    Programming the multifunction indicator
    Changing the multifunction display
    Using PathFinderto set multifunction indicator parameters
    Replacing the key (S1) with a DIGICODE
   7. Hydraulic assembly
    Hydraulic equipment
    Description
    Hydraulic circuits
    Stabiliser hydraulic circuit
    Draining the stabiliser hydraulic circuit
    Liftingjack hydraulic circuits
   8. Lifting system
    Initial lift
    Initial lift guidance

   Annex
   10. DIAGRAMS
    Circuit diagrams
    Power schematic
    Electrical control schematic N20 - N24 (LAC), 4 point chassis
    Electrical control schematic N20 - N24 (LAC), 5 point chassis
    Hydraulic diagrams
    Main hydraulic diagram
    Hydraulic diagram for stabilisers
